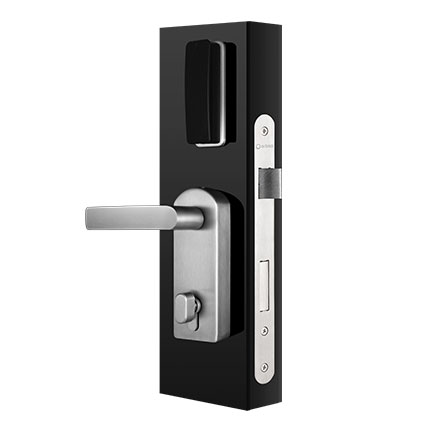

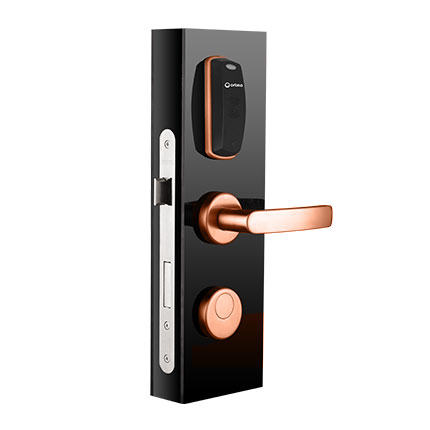

S3063P ORBITA Hotel door lock
- Material:Stainless Steel,Moisture Proof,Fire rated
- Working Voltage：DC6V or 4 AAA Alkaline batteries
- Low Voltage Alarm:＜4.8V
- Working Environment：-20℃~60℃
- Unlocking record：1680PCS
- Door Thickness：32-70mm
- Keycard Option：Mifare 1 card
- Size：L94mm x W36mm x H20mm
S3063P Lock can be used in hotels, hospitals, schools and apartments, which comes with Orbita management system to save time and costs.
S3076 hotel lock Summary
ORBITA S3063P Hotel Lock is made of grade 304 stainless steel with a PMMA card reader cover, with strong resistance to impact, corrosion and abrasion.
S3063P Door Lock can support other types of hotel management software, Fidelio/Opera, and Orbita wireless portable programmer for door lock setting, data collection and download functions. Certified by European CE and U.S. UL-10C, our products adopt the American standard 5-point tongue lock body with an anti-shim plunger design and an abnormal latch bolt alert for double security, stability and reliability. Functions such as door left open warning, low battery voltage warning, channel function and all-in-one function are available.
Product Details
- Solid deadbolt
- Renovated clutch inside lock panels
- Standard 1680 events,optional 3360events
- Optinal Bluetooth & Wireless Online solution
- Interface with Opera or FIAS format PMS
- Passed the 180-minute fire test
Technical Details
- Door Thickness: 5/4" (32mm) to 2（3/4 ）" (72mm) for standard product
- Operating Power: Quiescent current: <30 μA;
- dynamic current: < 200 mA
- Battery Life: last over one year
- Working Temperature: -20 ℃– 60℃;
- Relative Humidity: 20% – 90%
Compoments
The following ORBITA components are needed for a full functionality :
Encoder MI-ECD20
S50 Mifare Card
Wireless Portable Programmer
ORBITA Hotel System V5.6

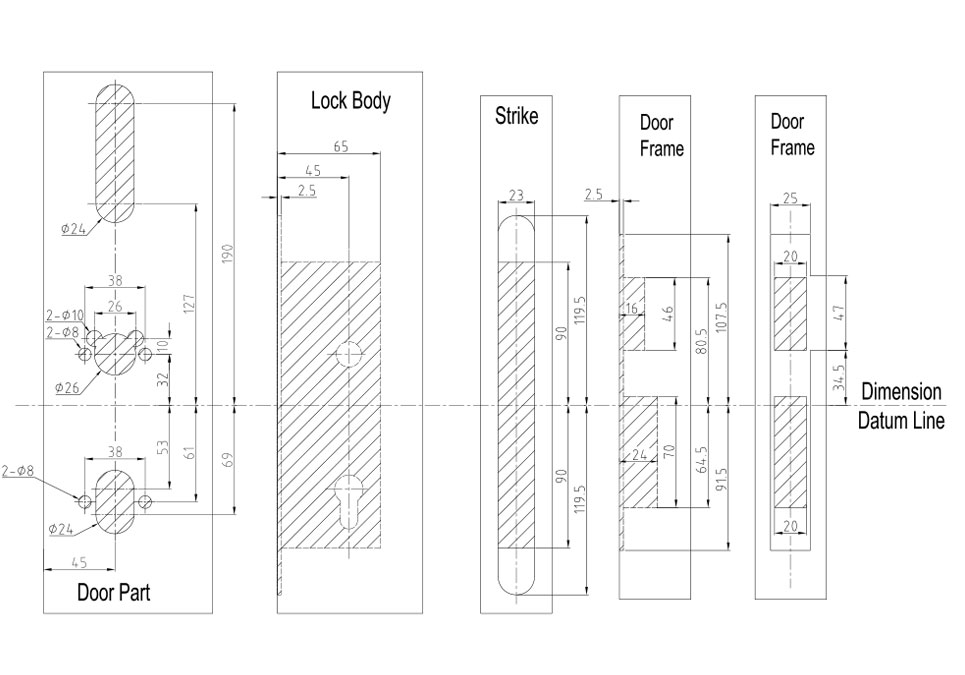

Drill holes (Unit:mm)
S3063P Hotel lock 45X85 mortise Circle plate (Right Open),
Note:
1. The continuous thick line parts are to be drilled, pls refer to the picture dimensions.
2.Centerline of lock body is the dimension datum line.
3.Dimension unit: mm.
4. The carmine dot line part is lock body, the continuous thin line part is door part.
