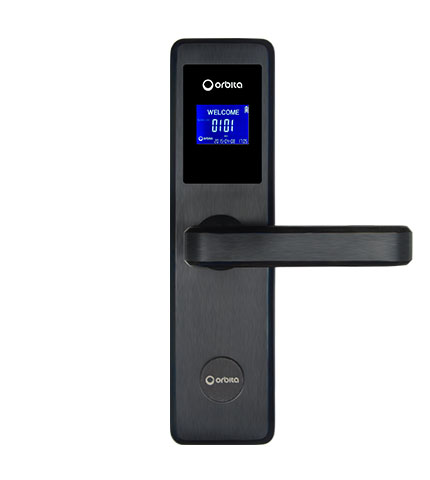

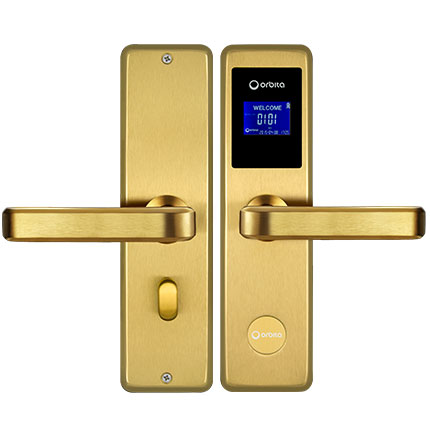

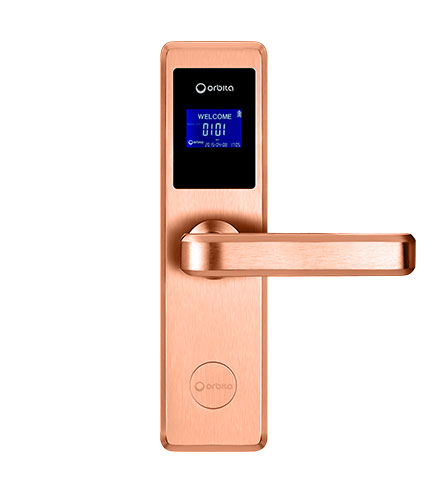

E4131 LCD hotel lock
- Working Voltage：DC6V or 4 AA Alkaline batteries
- Low Voltage Alarm:＜4.8V
- Working Environment：-20℃~60℃
- Unlocking record：1680PCS
- Door Thickness：32-70mm
- Keycard Option：Mifare 1 card
- Size：L280mmxW75mmxH22mm
Stainless Steel,Moisture Proof,Fire Retardant
support other types of hotel management software
Fidelio/Opera, and Orbita wireless portable programmer
Product Details
Security Features
- Solid deadbolt
- Renovated clutch inside lock panels
- Standard 1680 events,optional 3360events
- Optinal Bluetooth & Wireless Online solution
- Interface with Opera or FIAS format PMS
- Passed the 180-minute fire test
Technical Details
- Door Thickness: 9/8" (30mm) to 2（3/4 ）" (72mm) for standard product
- Operating Power: Quiescent current: <30 μA;
- dynamic current: < 200 mA
- Battery Life: last over one year
- Working Temperature: -20 ℃– 60℃;
- Relative Humidity: 20% – 90%
Compoments
The following ORBITA components are needed for a full functionality :
Encoder MI-ECD20
S50 Mifare Card
Wireless Portable Programmer
ORBITA Hotel System V5.6

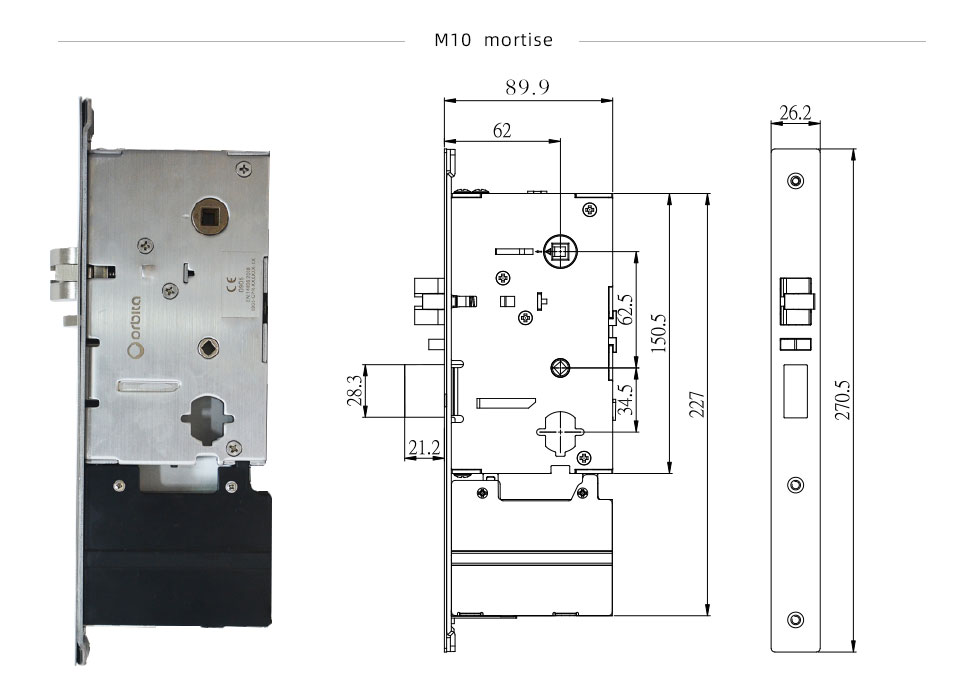

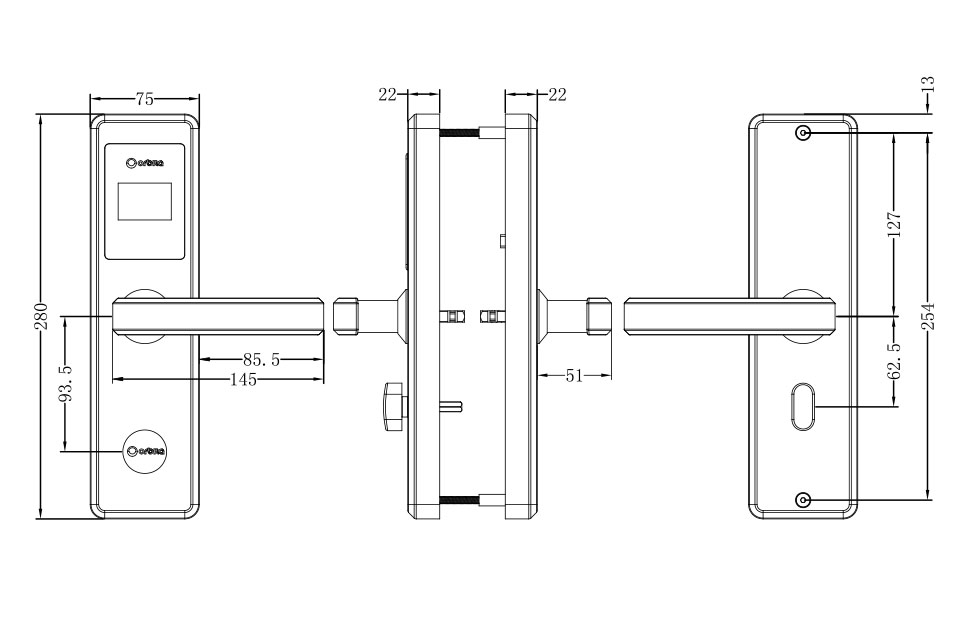

Drill holes (Unit:mm)
Note:
1. The continuous thick line parts are to be drilled, pls refer to the picture dimensions.
2.Centerline of lock body is the dimension datum line.
3.Dimension unit: mm.
4. The carmine dot line part is lock body, the continuous thin line part is door part.
